| Model Name | DLF0848-T | DLH0848-T | DLD0848-T |

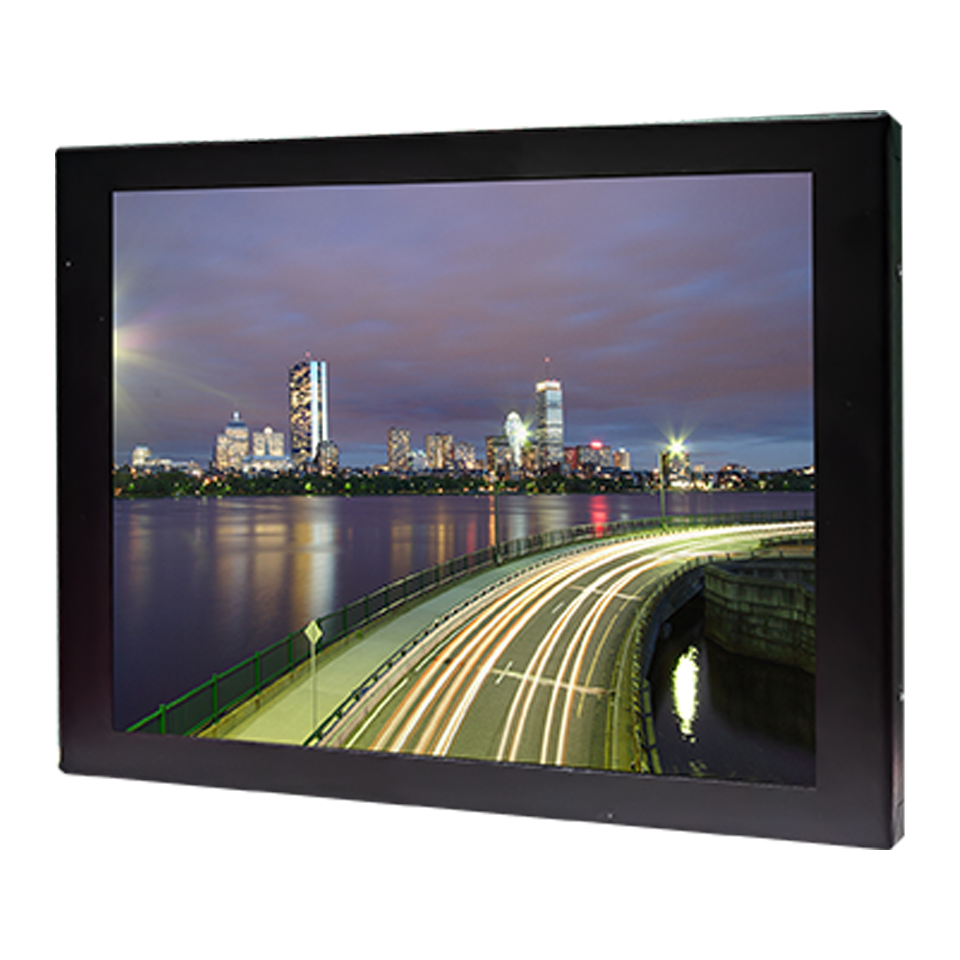

| Description | 8.4” TFT LCD, LED Backlight 1600 nits, 800x600 | ||
| size | 8.4” | ||
| Display area (mm) | 170.400(H) x 127.800(V) | ||
| Brightness | 1600 cd/m² | ||
| Resolution | 800x600 | ||
| Aspect ratio | 4:3 | ||
| Contrast ratio | 690 :1 | ||
| Pixel pitch (mm) | 0.213(H) x 0.213(V) | ||
| Pixel per inch (PPI) | 119 | ||
| Viewing angle | 160°(H),140°(V) | ||
| Color saturation (NTSC) | 58% | ||
| Display colors | 16.2M | ||
| Response time (Typical) | 30ms | ||
| Video interface | LVDS | VGA, DVI-D, HDMI | |
| Input power | DC 12V | ||
| Power consumption | 6W | 8W | |
| Dimensions (mm) | 202.60(H) x 148.82(V) x 13.07(T) | 223.51(H) x 154.02(V) x 51.60(T) | |
| Bezel size (U/B/L/R) | 10.520/10.500/19.970/12.750 | 12.27/12.25/25.64/25.64 | |
| Weight (Net) | 0.4 kg | 1.3 kg | |

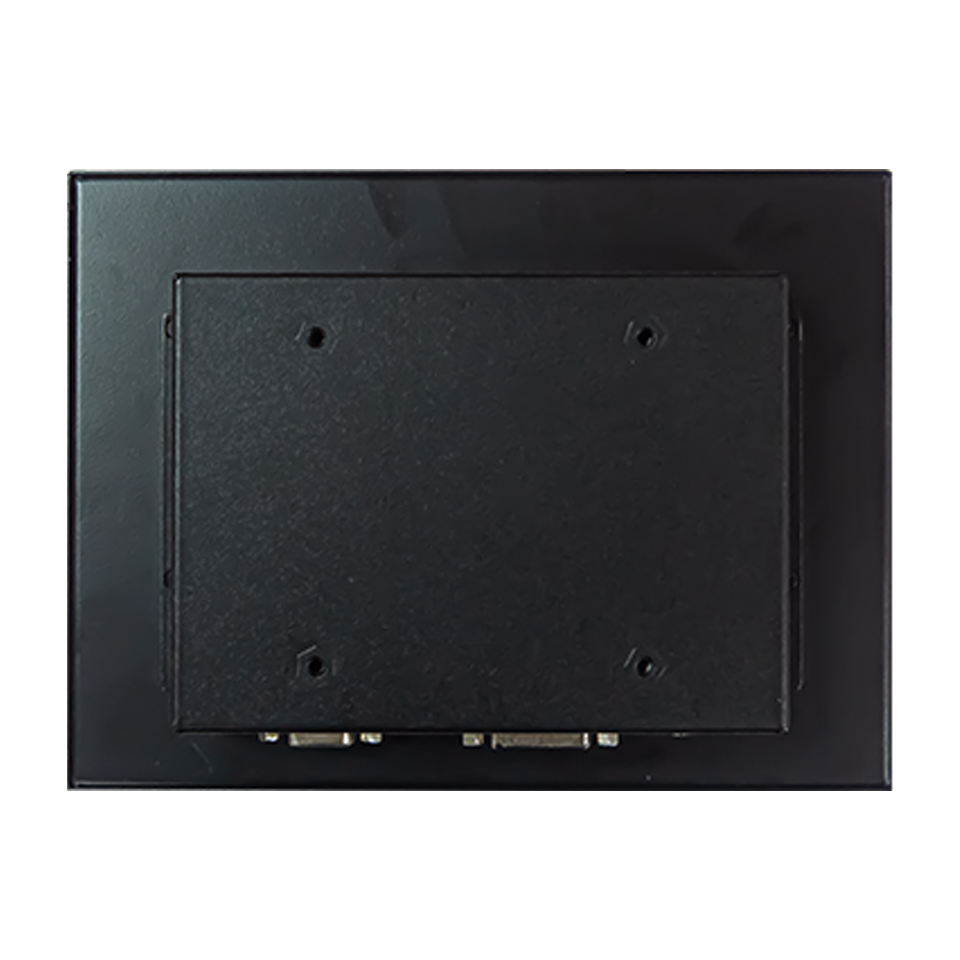

| Mounting | VESA 75x75 | ||
| OSD key | 4 keys (Power switch, menu, +, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | -30 ˚C ~ 80 ˚C | ||
| Storage temperature | -30 ˚C ~ 80 ˚C | ||
| Product approval | CE, FCC | ||
