| Model Name | DLF1825-E | DLH1825-E | SLD1825-E |

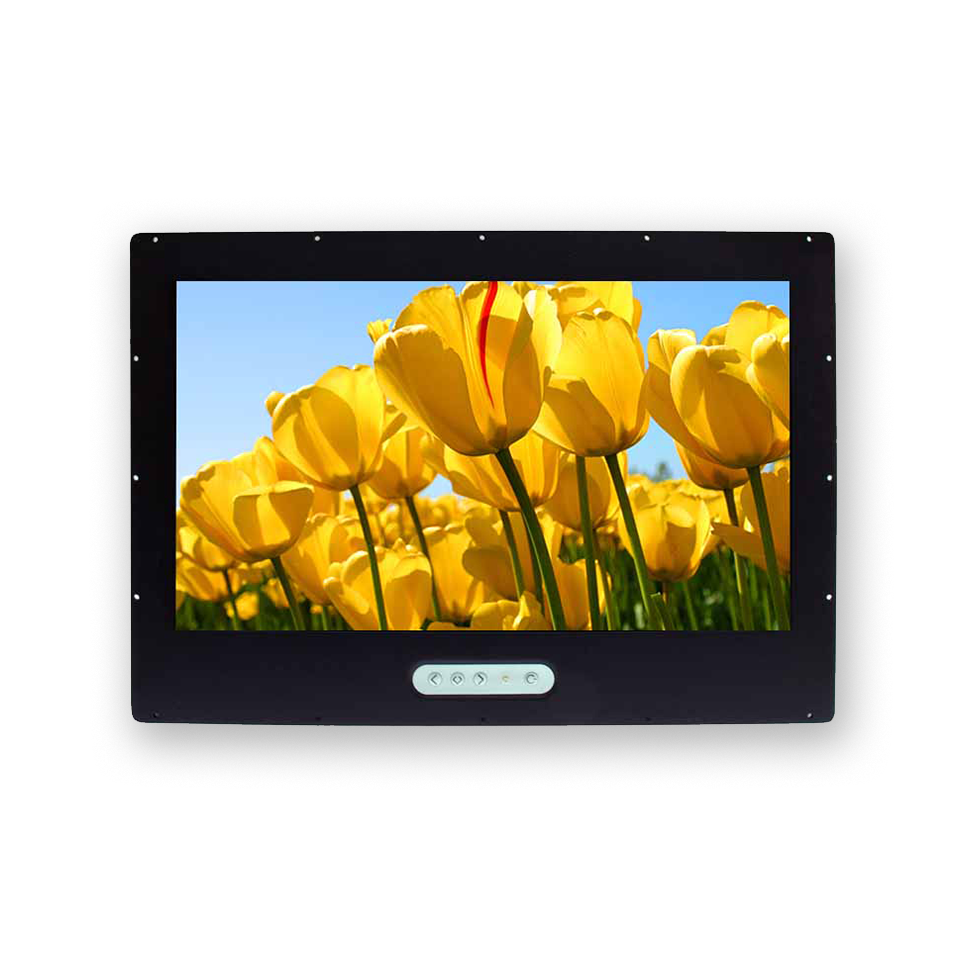

| Description | 18.5" TFT LCD, 1000 nits LED backlight, 1366x768 | ||
| size | 18.5" | ||
| Display area (mm) | 409.8(H) x 230.4(V) | ||
| Brightness | 1000 cd/m² | ||
| Resolution | 1366 x 768 | ||
| Aspect ratio | 16:9 | ||
| Contrast ratio | 1250:1 | ||
| Pixel pitch (mm) | 0.3 (H) x 0.3 (V) | ||
| Pixel per inch (PPI) | 84 | ||
| Viewing angle | 170° (H), 160° (V) | ||
| Color saturation (NTSC) | 82% | ||
| Display colors | 16.7M | ||
| Response time (Typical) | 5ms | ||
| Video interface | LVDS | VGA, DVI-D | |
| Input power | DC 12V | ||
| Power consumption | 16W | 21W | |
| Dimensions (mm) | 430.4 x 254.6 x 13.35 | 475 x 330 x 61.6 | |
| Bezel size (U/B/L/R) | 10.3/10.3/8.5/8.5 | 33.9/63.9/31.7/31.7 | |
| Weight (Net) | 1.3 kg | 4.8 kg | |
| Mounting | VESA 75x75, 100x100 | ||
| OSD key | 4 keys (Power switch, menu, +, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | 0°C ~ +50°C | ||
| Storage temperature | -20°C ~ +60°C | ||
| Product approval | CE, FCC | ||
下载
-
标题
SLD1825-E
类型Datasheet
发布日期2021/Aug/21
-
标题
DLF_H1825-E
类型Datasheet
发布日期2021/Aug/21
