Model Name | DLF2408-U | DLH2408-U | DLD2408-U |

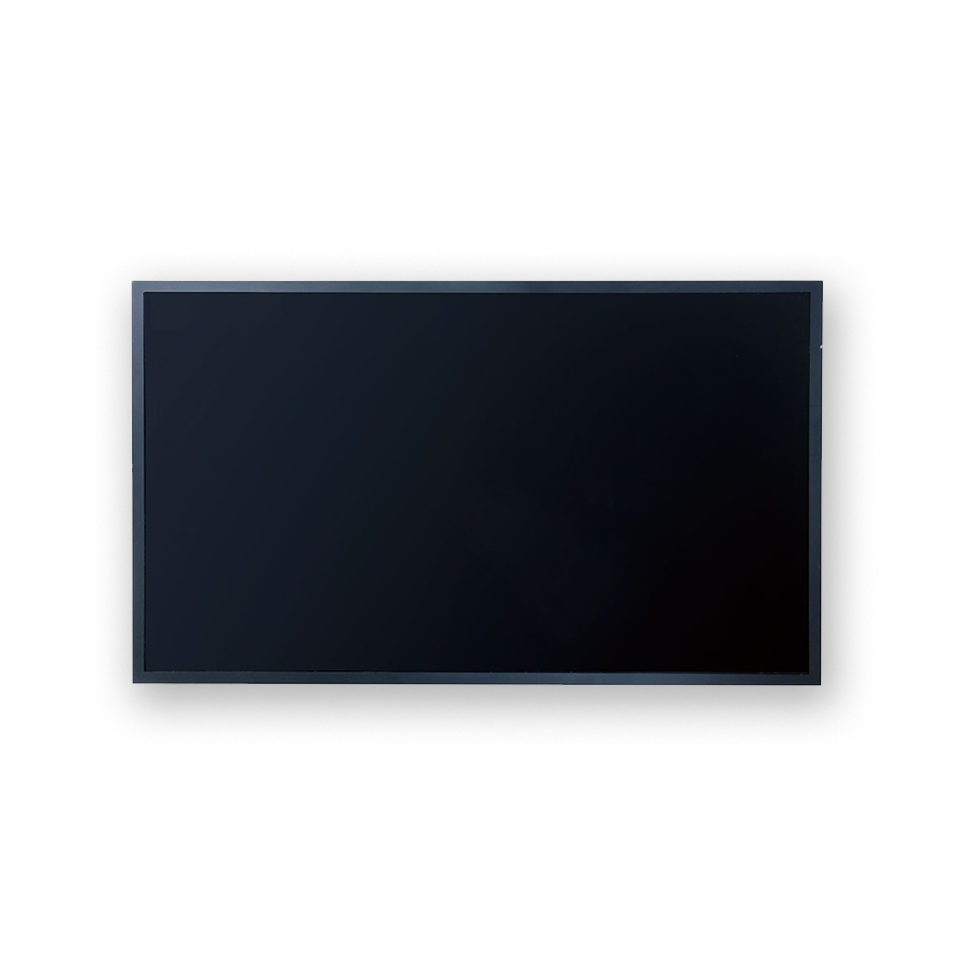

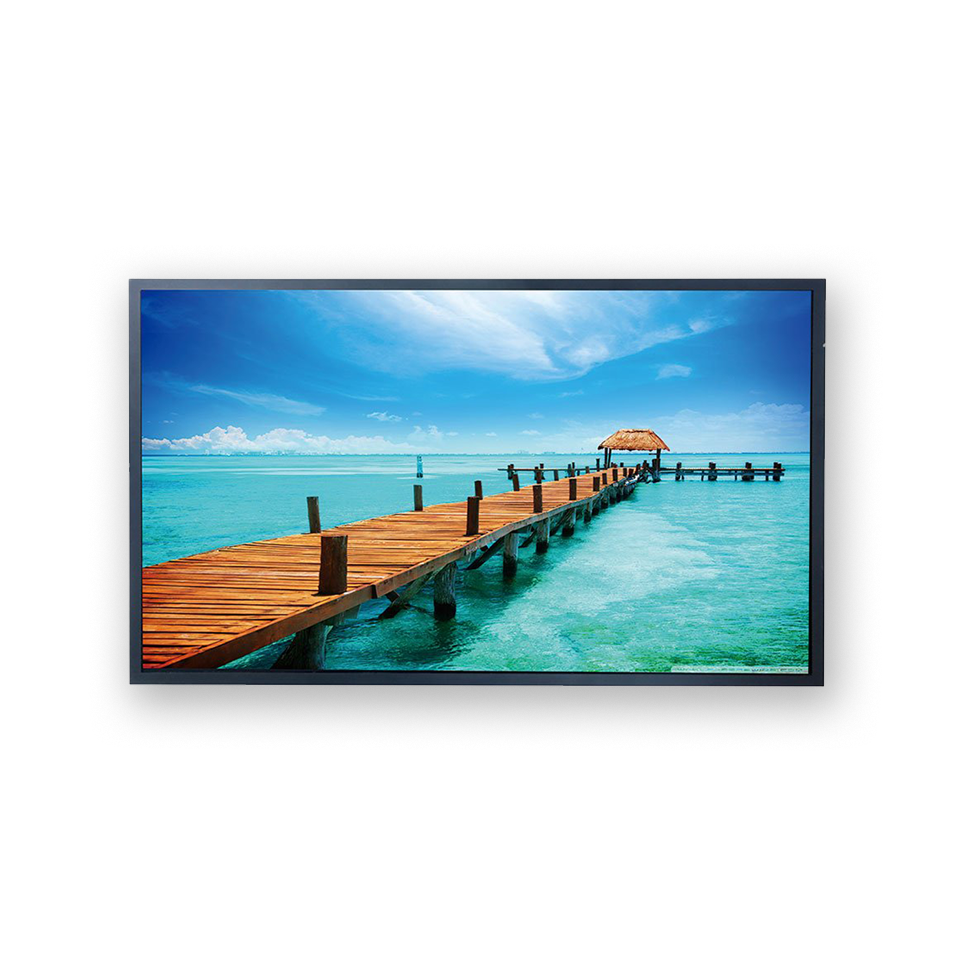

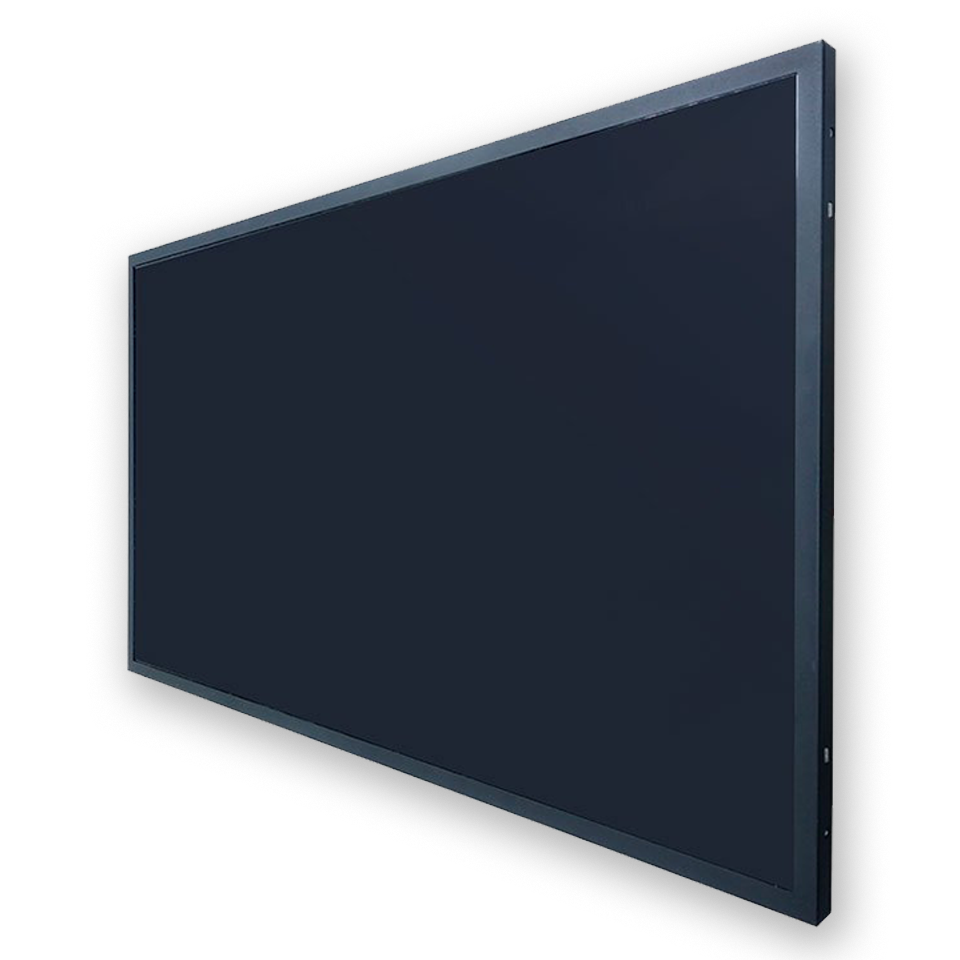

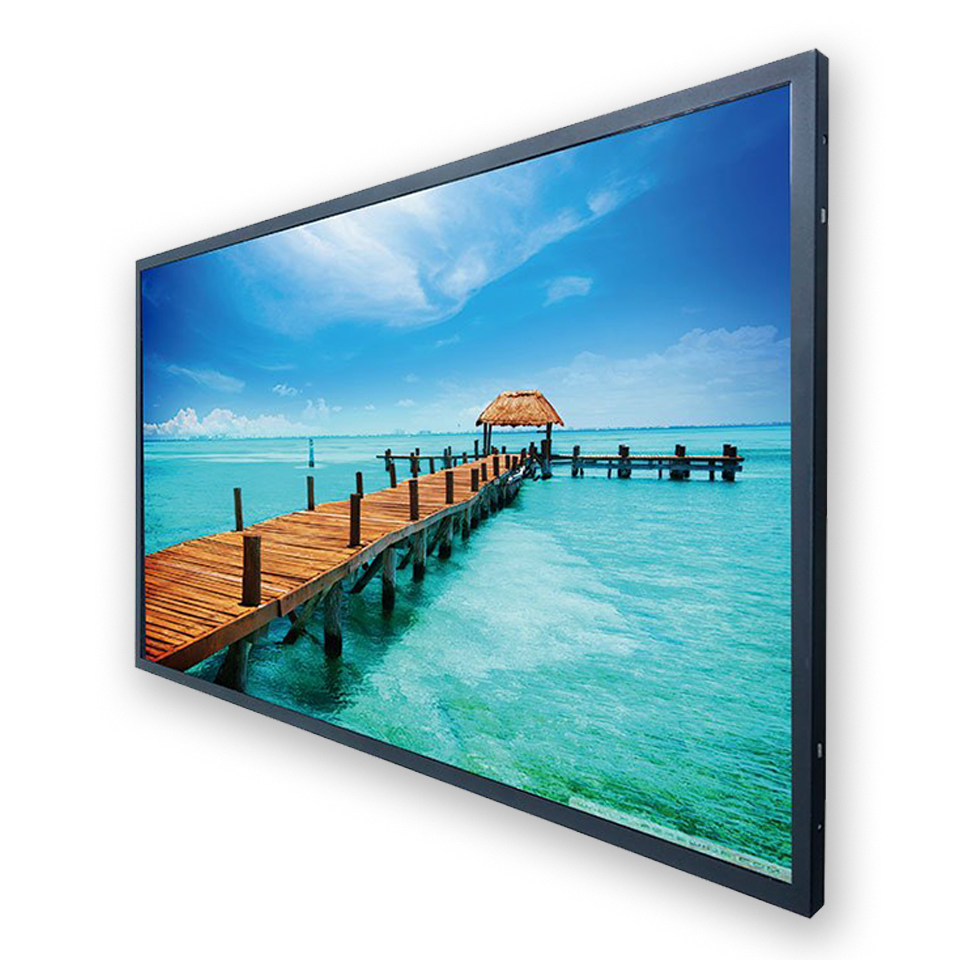

Description | 24” TFT LCD, 1600 nits LED Backlight, 1920x1080 | ||
size | 24” | ||
Display area (mm) | 531.360(H) x 298.890(V) | ||
Brightness | 1600 cd/m² | ||
Resolution | 1920x1080 | ||
Aspect ratio | 16:9 | ||
Contrast ratio | 5400:1 | ||
Pixel pitch (mm) | 0.276(H) x 0.276(V) | ||
Pixel per inch (PPI) | 92 | ||
Viewing angle | 178° (H), 178° (V) | ||
Color saturation (NTSC) | 84% | ||
Display colors | 16.7M | ||
Response time (Typical) | 25ms | ||
Video interface | LVDS | DVI-I, HDMI, DP | |
Input power | DC 12V | ||
Power consumption | 40W | 43W | |
Dimensions (mm) | 555.9 x 323.3 x 14.6 | 558.44 x 325.6 x 36.53 | |
Bezel size (U/B/L/R) | 12.21/12.21/12.27/12.27 | 13.35/13.36/13.54/13.54 | |
Weight (Net) | 2.4 kg | 4 kg | |
Mounting | VESA 75x75, 100x100 | ||
OSD key | 4 keys (Power switch, menu, +, -) | ||
OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
Operating temperature | -20 ˚C ~ 70 ˚C | ||
Storage temperature | -30 ˚C ~ 80 ˚C |
