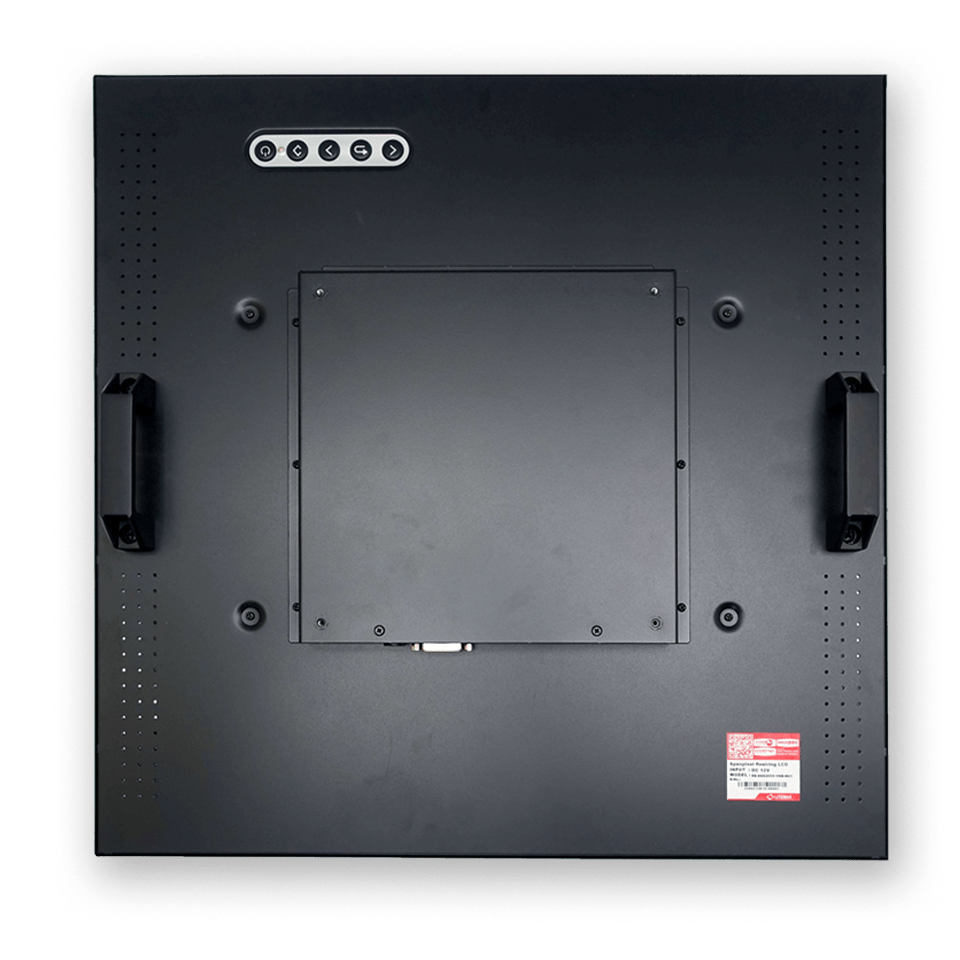

Square LCD displays
3325-Y
32" TFT LCD, LED Backlight 500 nits, FHD 1920x1920
- 33.2" square-shaped LCD
- Square display (aspect ratio of 1:1)
- Sunlight Readable, High Brightness (1,000nits)
- Resolution: 1920 x 1920
- Slim bezel
- Wide view angle of 178° (H), 178° (V)
- Low power consumption
- BL MTBF: 100,000 hours
| Model Name | SSF3325-Y | SSH3325-Y | SSD3325-Y |
| Description | 33.2” TFT LCD, LED Backlight 1000 nits, Square display (1920x1920) | ||
| size | 33.2" | ||
| Display area (mm) | 596.16 (H) ×596.16 (V) | ||
| Brightness | 1000 cd/m² | ||
| Resolution | 1920x1920 | ||
| Aspect ratio | 1:1 | ||
| Contrast ratio | 600:1 | ||
| Pixel pitch (mm) | 0.3105(H) x 0.3105(V) | ||
| Pixel per inch (PPI) | 82 | ||
| Viewing angle | 178° (H), 178° (V) | ||
| Color saturation (NTSC) | 77% | ||
| Display colors | 16.7M | ||
| Response time (Typical) | 8ms | ||
| Video interface | LVDS | DVI, HDMI, DP | |
| Input power | AC100~240V | ||
| Power consumption | 56W | 60W | |
| Dimensions (mm) | 612.96x612.96x12.5 | 615.8x615.8x62.9 | |
| Bezel size (U/B/L/R) | 5.5/5.5/5.5/5.5 | 6.9/6.9/6.9/6.9 | |
| Weight (Net) | 5.5kg | 11.5kg | |
| Mounting | VESA 400x200, 400x300 | ||
| OSD key | 5 Keys (Power Switch, Menu, +, Exit, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | 0°C ~ +50°C | ||
| Storage temperature | -20°C ~ +60°C | ||
| Product approval | CE, FCC | ||
