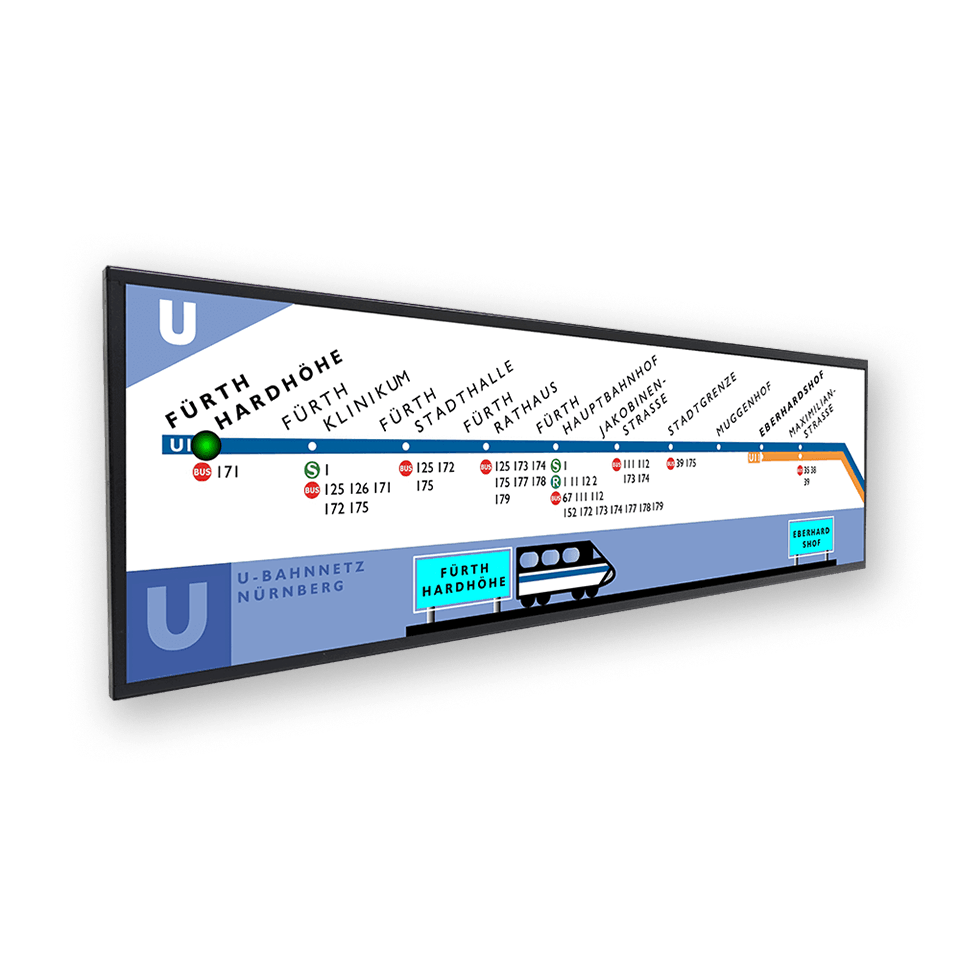

长条液晶显示器
4485-I
44.8" Resizing LCD, 1000 nits LED backlight, MaxRGB, 3840x1076
- 44.8" resizing LCD
- Resizing display (aspect ratio of 16 : 4.5)
- Sunlight readable, high brightness (1,000 nits)
- Resolutions: 3840 x 1076
- MaxRGB (NTSC 94%)
- Wide view angle of 178° (H), 178° (V)
- BL MTBF: 100,000 hours
| Model Name | SSF4485-I | SSH4485-I | SSD4485-I |
| Description | 44.8" Resizing LCD, 1000 nits LED backlight, MaxRGB, 3840x1076 | ||
| size | 44.8"” | ||
| Display area (mm) | 1095.84(H) x 307.1 (V) | ||
| Brightness | 1000 cd/m² | ||
| Resolution | 3840x1076 | ||
| Aspect ratio | 16 : 4.5 | ||
| Contrast ratio | 6300:1 | ||
| Pixel pitch (mm) | 0.2854 (H) x 0.2854 (V) | ||
| Pixel per inch (PPI) | 89 | ||
| Viewing angle | 178° (H), 178° (V) | ||
| Color saturation (NTSC) | 94% | ||
| Display colors | 1.07G | ||
| Response time (Typical) | 9.5ms | ||
| Video interface | V-by-One | VGA, DVI-D, HDMI, DP | |
| Input power | AC 100~240V | ||
| Power consumption | 113W | 118W | |
| Dimensions (mm) | 1121.7x338.9x21.6 | 1124.3x341.5x64.6 | |
| Bezel size (U/B/L/R) | 13.3/13.3/10.9/10.9 | 14.6/14.6/12.2/12.2 | |
| Weight (Net) | 6.8 kg | 16.2 kg | |
| Mounting | VESA 300x75 | ||
| OSD key | 5 keys (Power switch, menu, +, Exit, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | 0°C ~ +50°C | ||
| Storage temperature | -20°C ~ +60°C | ||
| Product approval | CE, FCC | ||
