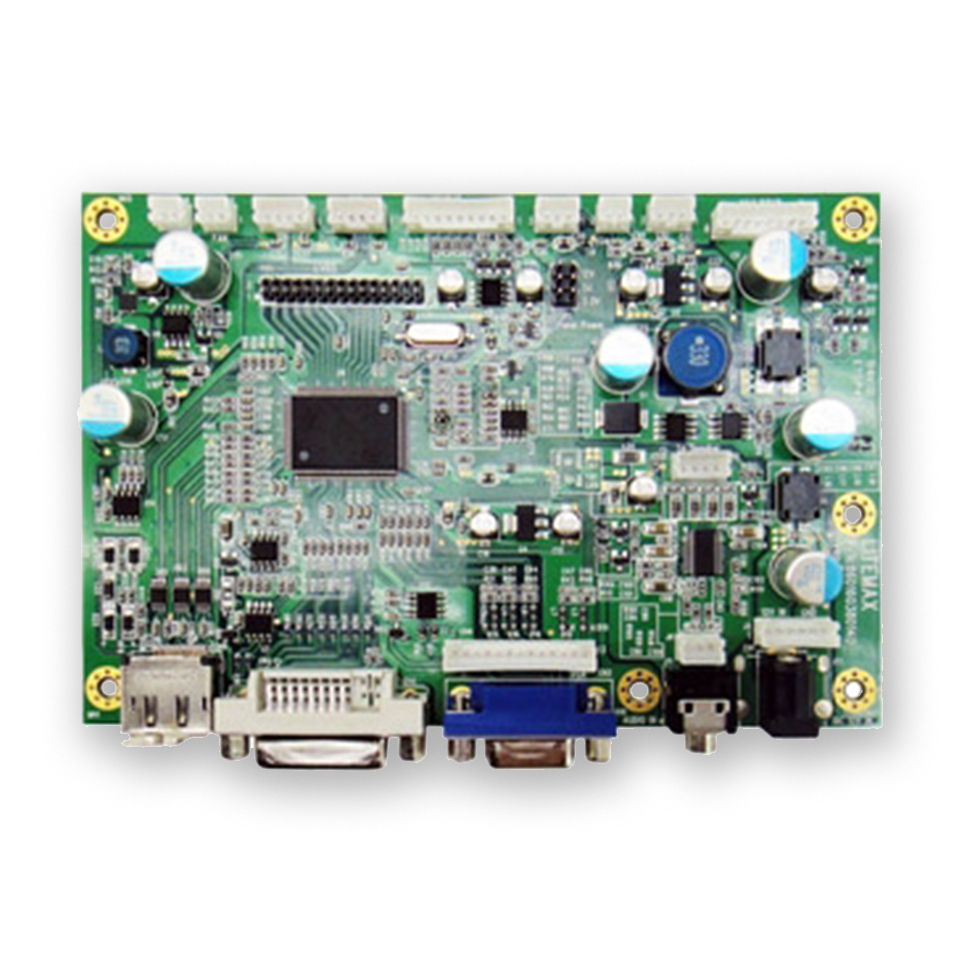

Display Control Board (WUXGA)
AD6038GDPA
Display Control Board (WUXGA)
- Maximum resolution WUXGA (1920x1200)
- Support dual pixel (48bits) LVDS and singlepixel (24bits) LVDS
- Support refresh rate up to 75Hz, compatibilitywith standard VESA specification
- Support non-linear scaling from 4:3 to 16:9 or16:9 to 4:3
- DisplayPort 1.1a compliant
- Video input: DisplayPort, DVI & VGA input
- Dual/single LVDS interface
- Support Panel DC5V or 3.3V, 12V Output
- OSD Control
- Inverter Analog or PWM Dimming Control
- *External V.R. brightness control (optional)
- *External light sensor brightness control(optional)
- *External RS232 control (optional)
- Audio in and b2Wx2 Audio Out(optional)
| Model name | AD6038GDPA |
| Chipset | STDP6038 |
| Max. Resolution | WUXGA (1920x1200) |
| Interface | Single/Dual LVDS |
| Input Power | DC 12V |
| Panel Power Selection | 3.3V, 5V, 12V |
| Video Input (Standard) | VGA,DVI,DP |
| Video Input (Optional) | - |
| Audio Phone Jack | - |
| RS232 Control Port | Yes (Optional) |
| Light Sensor | Yes (Optional) |
| Speaker | 2W x2 |
| External VR Control | Yes (Optional) |
| IR | Yes |
| Dimension | 100 x 100 mm |
| F / R Control Button | 5 Key 、 4 Key |
| 5 key | Power Switch, Menu, Select (+,-), Auto |
| 4 key | Power Switch, Menu, Select (+,-) |
| OSD Menu | Brightness, Contrast, H/V Position, Color, Phase, Clock… |
| Pixel Color | 8 bits(LVDS) |
| Inputs | VGA,DVI,DP |
| Resolution | 1920X1200 |
