Intel® Smart Kiosk Module
AEXP-SKM0-IOB0

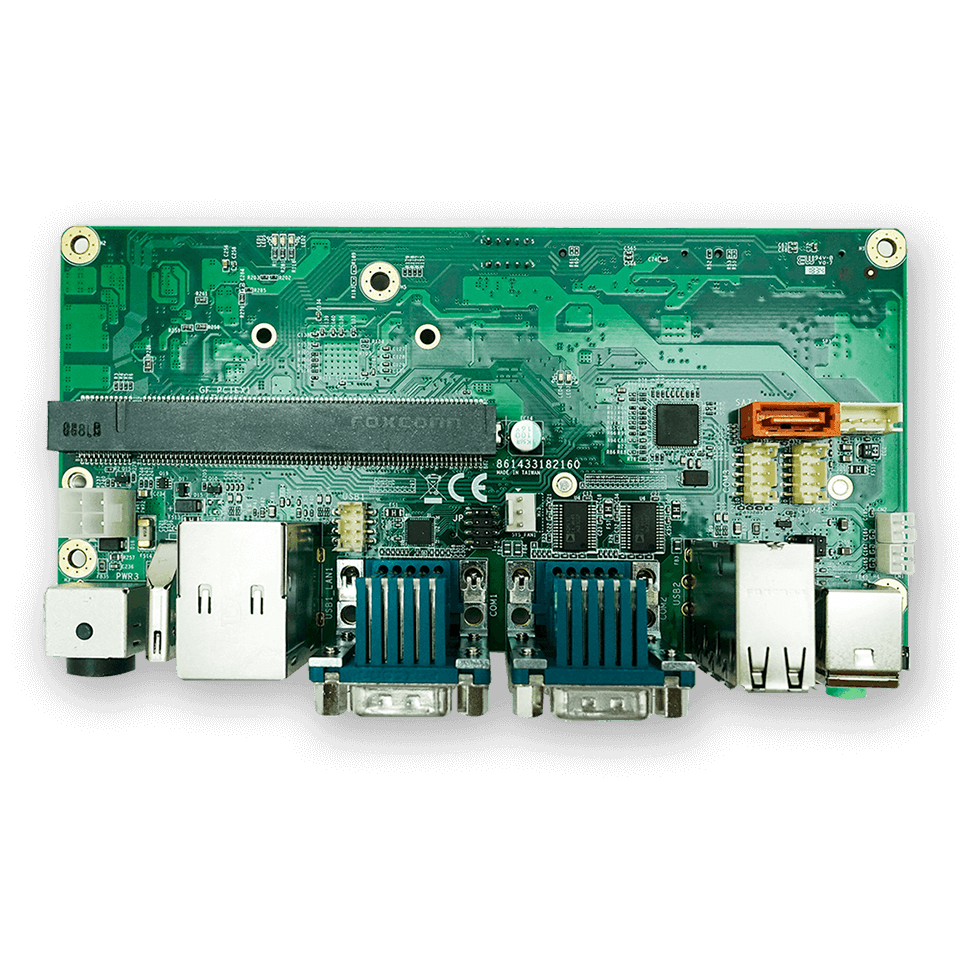

Intel® Smart Kiosk Module / Smart Display Module Carrier Board, Supports Intel® SKM / SDM Module with HDMI/cLVDS, SATA/M.2 M-key 2280, 2 mPCIe, 7 COM, 8 USB, LAN.
- Support Intel® SKM / SDM Module
- Multi-Display : HDMI / cLVDS 4K@60 (option)
- Storage : 1 SATA III port and 1 M.2 M-key 2280 (SSD) slot
- Expansion slot : 2 Mini-PCIe (1 w/ uSIM) slots
- Int. I/O : 2 COM, FAN, GPIO (1 bit), GSPI, 2 I2C (Master/Slave), UART, 2 USB 2.0 ports
- Rear I/O : 2 Audio Jack (Line-out/Mic-in), 4 COM, 1 LAN (RJ45), 2 USB 3.0 and 4 USB 2.0
- Power input : DC-IN Jack 12Vdc or 19Vdc ~ 24Vdc
AEXP-SKM0-IOB0 is the new Intel® Smart Kiosk Module (Intel® SKM) is a revolutionary solution that makes it easier to scale and maintain interactive kiosks, which are increasingly being used by businesses and governments worldwide to offer customers around-the-clock access to information and services.
A key feature of the Smart KIOSK Module family is its modular design, which provides a standard hardware form factor reference design for the KIOSK system. From the developer’s perspective, this architecture separates the system's “one-size-fits-all” compute module and the peripheral interface board (PIB). This is a significant design feature because it eliminates the need to unplug and accurately reattach multiple cables when it is time to service, replace, or upgrade the compute module. This simple connection is made using a standard PCIe-based interface.
A key feature of the Smart KIOSK Module family is its modular design, which provides a standard hardware form factor reference design for the KIOSK system. From the developer’s perspective, this architecture separates the system's “one-size-fits-all” compute module and the peripheral interface board (PIB). This is a significant design feature because it eliminates the need to unplug and accurately reattach multiple cables when it is time to service, replace, or upgrade the compute module. This simple connection is made using a standard PCIe-based interface.
| Model name | AEXP-SKM0-IOB0 |
| Form Factor | Smart Kiosk Module- Carrier Board |
| Dimensions (L)x(W)mm | 175mm x 88mm |
| Serial ATA | 1 x SATA III port (SKM only) |
| Expansion Slot | 1 x Mini-PCIe Full size w/ uSIM, 1 x Mini-PCIe Full size (SKM only), 1 x M.2 M-Key 2280 SATA SSD (SKM only) |
| Environment | |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) standard |
| Storage Temperature | -40°C ~ 80°C (-40°F ~ 176°F) |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Internal I/O | |
| USB | 2 x USB 2,0 |
| COM | 1 x RS-232 Tx/Rx, 2 x RS-232 (SKM only) |
| Display | 1 x cLVDS (optional) |
| Digital I/O | 1 x 1-bit Programmable GPIO (SKM only) |
| SMB | 1 x I2C Master, 1 x I2C Slave |
| FAN | 1 x 3-pin System Fan |
| Rear I/O | |
| Audio | 1 x Line-out and Mic-in Audio Jack (SKM only) |
| LAN | 1 x LAN RJ45 (SKM only) |
| USB | 4 x USB 2.0 (2 x USB 2.0 SDM only), 2 x USB 3.0 (SKM only) |
| COM | 1 x RS-232/422/485 (SKM only), 3 x RS-232 (SKM only) |
| Display | 1 x HDMI |
| Power connector | DC Power Jack 4-pin lock and ATX 2x2-Pin |
| Power Requirement | |
| Power Type | DC-IN 12Vdc or 19Vdc ~ 24Vdc |
