Mini-ITX 工业级主机板

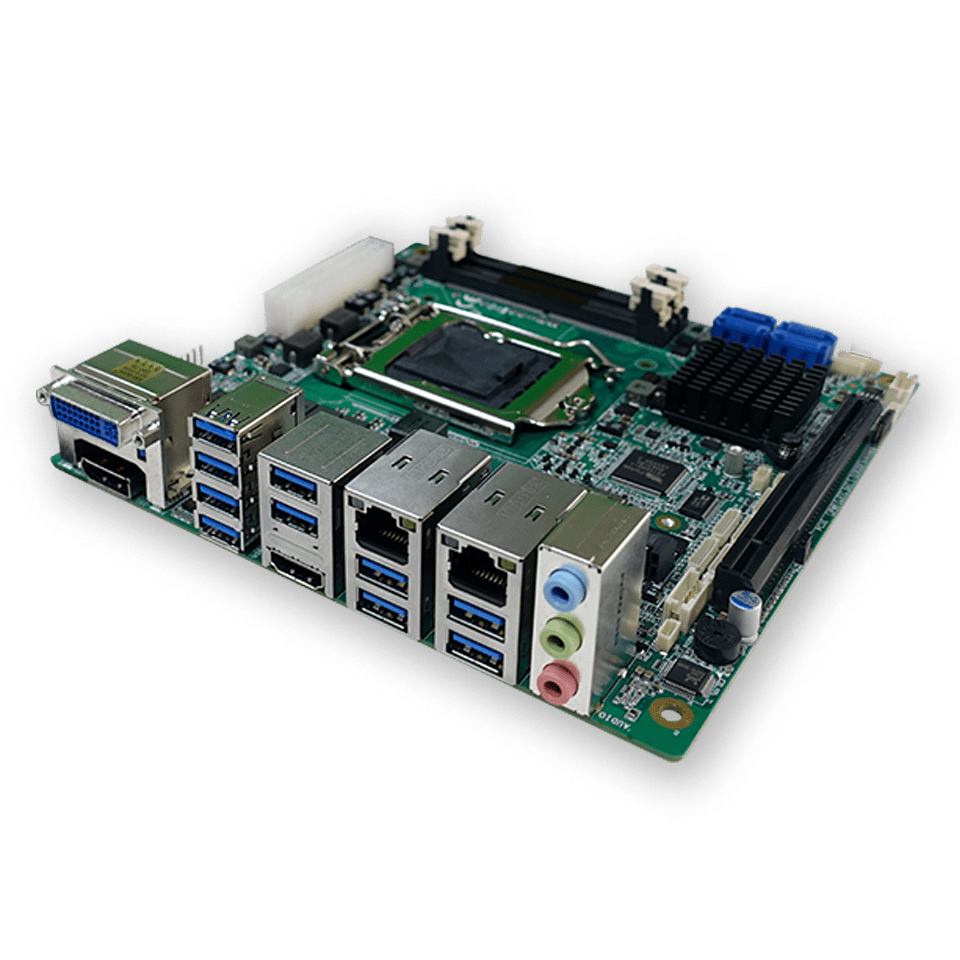

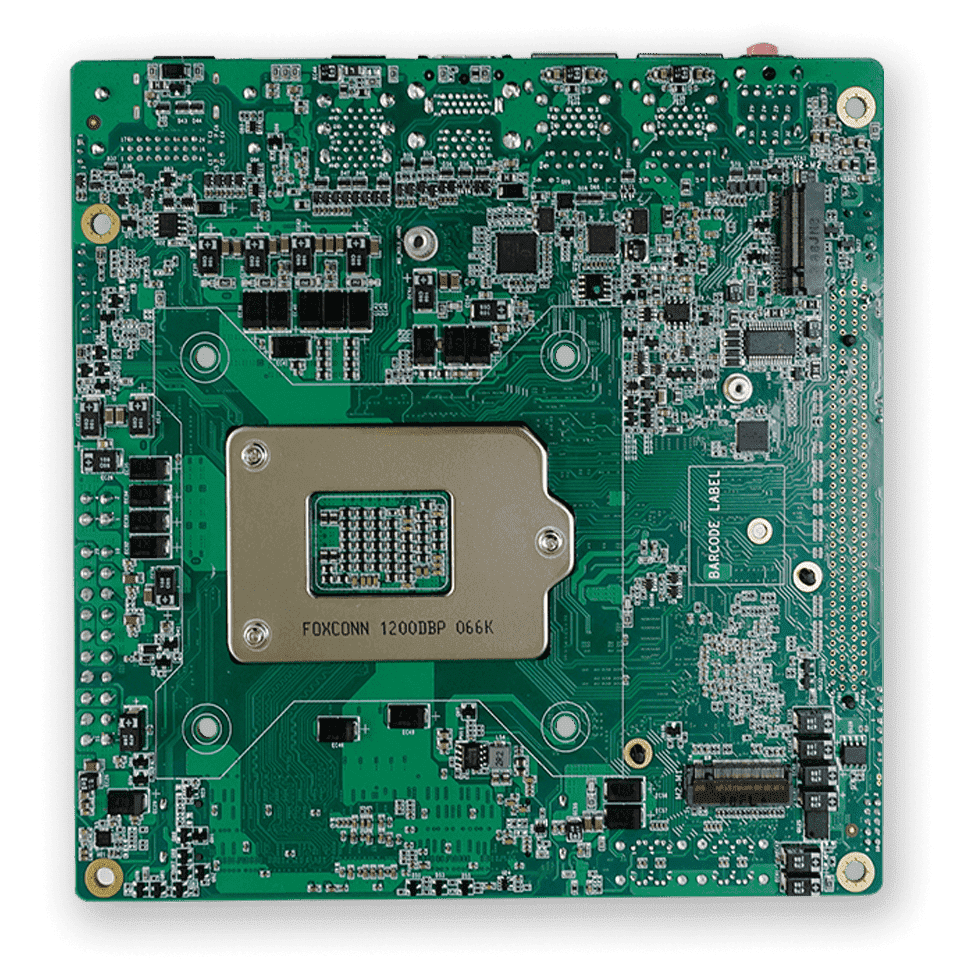

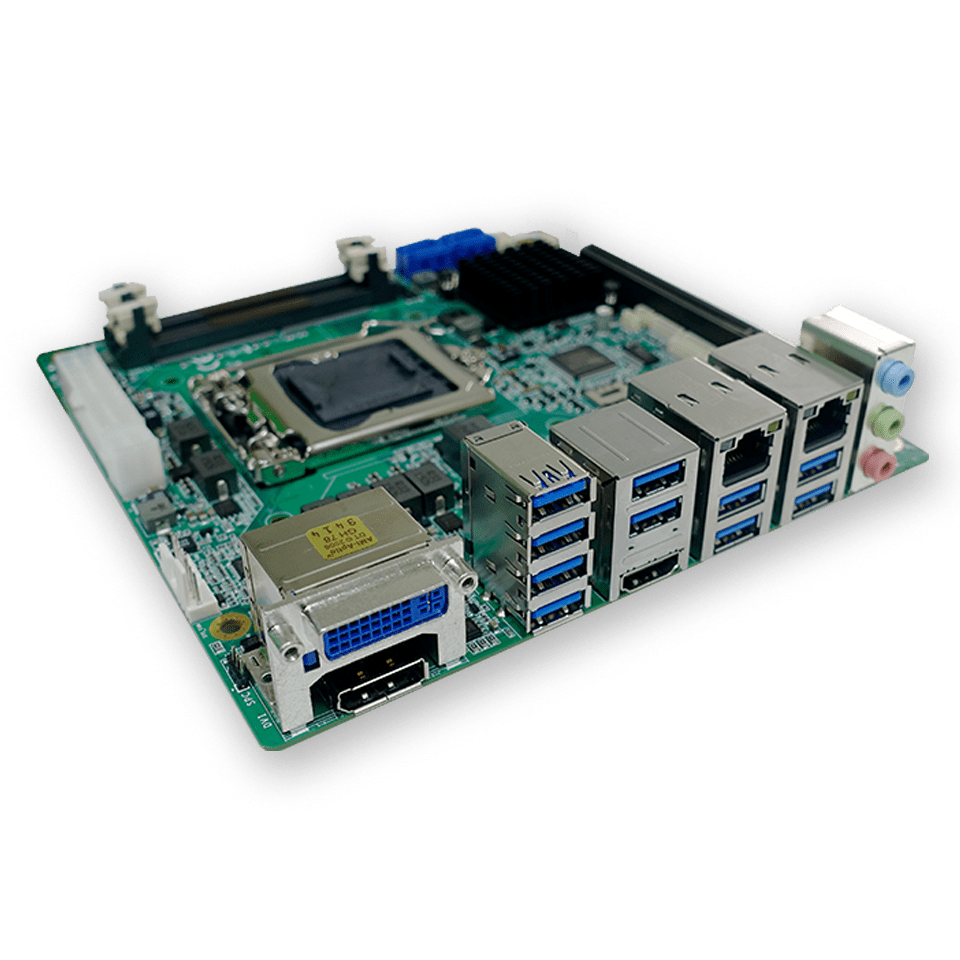

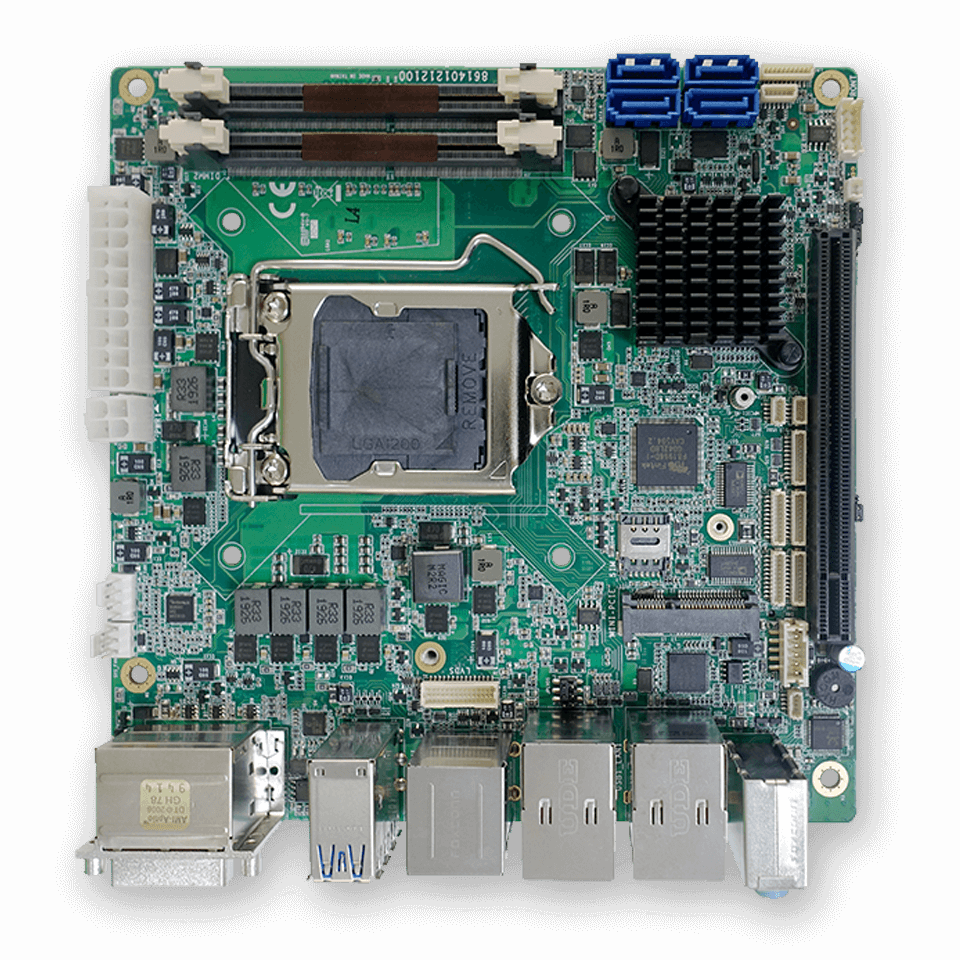

AMIX-CML0
Mini-ITX Motherboard with LGA1200 Socket for 10th Gen Intel® Core™ i9/i7/i5/i3/ Pentium®/Celeron® Processors, HDMI/ DP/DVI-I/LVDS(co-lay with eDP/VGA), 4 SATA III, 4 COM, 12 USB, Dual Intel® GbE LAN
- Intel® 10th Generation Core™ i9/i7/i5/i3 /Pentium®/Celeron® series processor (LGA1200 socket) with Q470E/H420E chipset
- Two 260-pin SO-DIMM up to 32GB DDR4 2933MHz SDRAM
- Multi-Display: HDMI/DP/DVI-I/VGA/LVDS (co-lay with eDP)
- Two Intel® Gigabit Ethernet ports
- 1 xPCIe (x16), 1 x Mini-PCIe, 2 x M.2 M-key 2280
- 4 x SATA III, 4 x COM, 10x USB 3.2 Gen. and 2 x USB 2.0
- Supports 4K/2K resolution display
- ATX Power support
- Supports Intel vPro, AMT technologies
主要特色
-
Quad Display
-
Multi Tasking
-
4K Stream
AMIX-CML0, the latest addition to its family of Mini-ITX form factor embedded boards. Based on Intel's latest Q470E and H420E chipsets, the board is designed to accommodate 10th Gen Intel® Core™ processors (codename Comet Lake-S) in LGA 1200 package with a Thermal Design Power (TDP) of up to 65W. Supporting two 260-pin SO-DIMM DDR4 2933/2666/2400 up to 64GB of memory, the new AMIX-CML0 enables smooth, responsive performance for faster multitasking and productivity to fit the needs of demanding applications such as AIoT industrial automation, machine vision, smart factory, and intelligent transportation.
Built to provide high performance and stability to satisfy the requirements in various environments, the AMIX-CML0 boasts a wide range of I/O and rich expansion, including 1x PCI Express x16 and multiple M.2 slots for wireless connectivity, storage and increased functionality in a wide range of applications. It also features two Gigabit LAN, ten USB 3.2 (Gen1), two USB 2.0, four COM, and four SATA III ports.
Up to 31% better integer multi-tasking compute intensive application performance Up to 31% better integer multi-tasking compute intensive application performance, AMIX-CML0 can deliver smooth and real-time 4K content streaming on multi displays, via HDMI, DisplayPort, DVI-I, eDP or 24-bit LVDS interface and VGA. In addition, the motherboard supports iAMT 12.0 technology for remote management and computer platform integrity functions.
Built to provide high performance and stability to satisfy the requirements in various environments, the AMIX-CML0 boasts a wide range of I/O and rich expansion, including 1x PCI Express x16 and multiple M.2 slots for wireless connectivity, storage and increased functionality in a wide range of applications. It also features two Gigabit LAN, ten USB 3.2 (Gen1), two USB 2.0, four COM, and four SATA III ports.
Up to 31% better integer multi-tasking compute intensive application performance Up to 31% better integer multi-tasking compute intensive application performance, AMIX-CML0 can deliver smooth and real-time 4K content streaming on multi displays, via HDMI, DisplayPort, DVI-I, eDP or 24-bit LVDS interface and VGA. In addition, the motherboard supports iAMT 12.0 technology for remote management and computer platform integrity functions.
| Model name | AMIX-CML0 |
| Form Factor | Mini-ITX |
| Dimensions (L)x(W)mm | 170mm x 170mm (6.69" x 6.69") |
| Processor | Intel® 10th Gen Core™ i9/i7/i5/i3/Penitum®/Celeron® processors (LGA1200). (max. TDP 65W) |
| Chipset | Intel® Q470E or H420E |
| BIOS | AMI SPI Flash ROM |
| LAN Controller | Intel® I219LM + i211 GbE |
| Audio Codec | Realtek ALC888S |
| Watchdog Timer | Yes |
| Memory | |
| Technology | DDR4 SDRAM 2933MHz |
| Max. Capacity | up to 64GB (32GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
| Display | |
| Graphic | Intel® UHD Graphics 630 |
| Display Interface | DP, HDMI, DVI-I, LVDS (Dual channel 18/24-bit, eDP/VGA co-lay) |
| I/O | |
| Expansion Slot |
1 x PCIe (x16) 1 x Full-Size Mini-PCIe with SIM card supported 1 x M.2 M-key 2280 (NVME/SATA/PCIe)1 x M.2 M-key 2280 (PCIe) |
| LAN | 2 x 10/100/1000 Mbps |
| Serial ATA | 4 x SATA III |
| Audio | Line-in, Line-out, Mic-in |
| USB |
10 x USB 3.2 Gen. 1(Q470E) 6 x USB 3.2 Gen. 1(H420E) 2 x USB 2.0 (box-header) |
| COM | 3 x RS-232, 1 x RS-232/422/485 |
| Display | DP, HDMI, DVI-I, LVDS (Dual channel 18/24-bit, co-lay eDP/VGA) |
| Digital I/O | 4-in/4-out |
| SMB | N/A |
| PS/2 | N/A |
| Power Requirement | |
| Power connector | ATX (20P+4P) |
| Power Type | ATX |
| Power Mode | ATX |
| Environment | |
| Storage Temperature | -20°C ~ 80°C (-4°F ~ 176°F) |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) |
