Intel® 智能显示模组

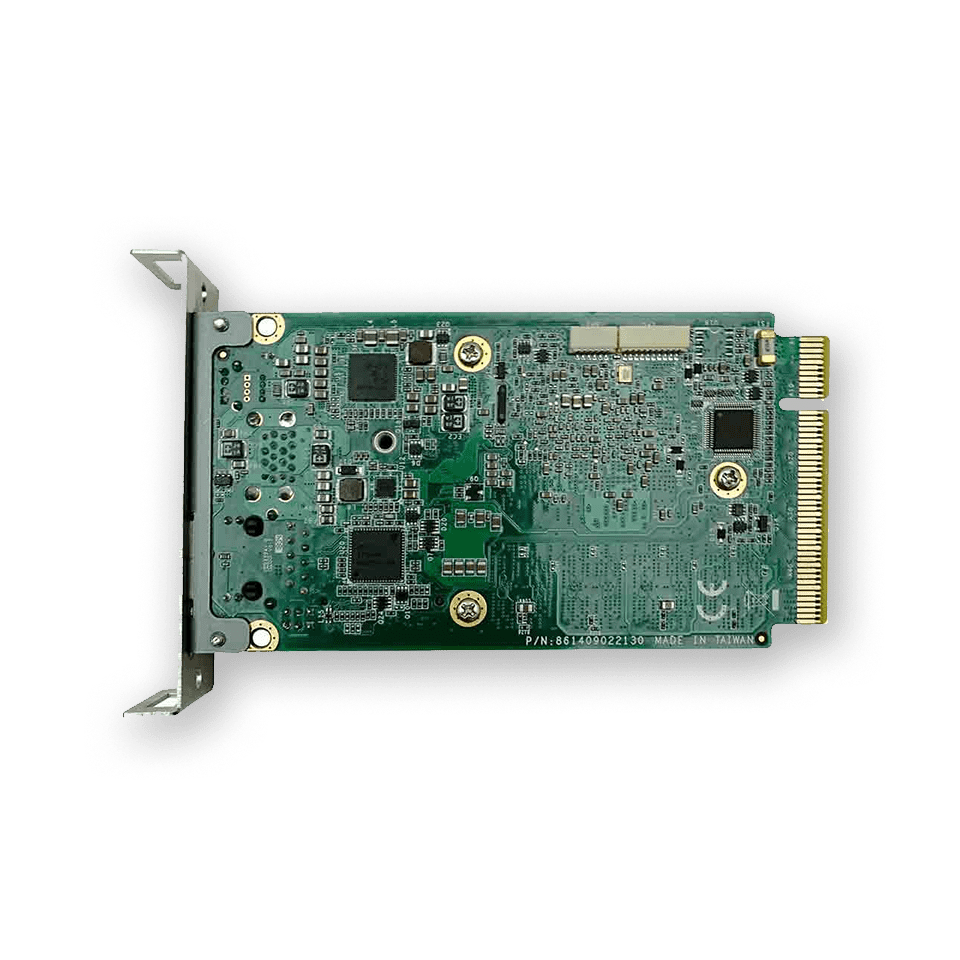

ASDM-APL6
Intel® Smart Display Module with Intel® Atom® / Pentium® / Celeron® processor, 2 USB, M.2 E-Key 2230, Intel® GbE LAN.
- Intel® Smart Display Module (Intel® SDM) specification
- Intel® Atom® / Pentium® / Celeron® processor (Apollo Lake)
- LPDDR4 on board up to 8GB SDRAM, eMMC on board up to 64GB
- One Intel® Gigabit Ethernet ports
- 1 M.2 E-Key 2230 (WiFi/BT) expansion slot2 USB 3.0
- 2 USB 3.0 ports
ASDM-APL5/APL6 is followed Intel® Smart Display Module. It’s powered by the onboard Intel® ATOM®/Pentium®/Celeron® processor (code name: Apollo Lake) and the sleekest all-in-one module which makes for a thinner display. The ASDM-APL5/APL6 can be easily connected to an SDM-ready display via a high-speed PCIe edge connector which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 1.4, DisplayPort 1.2, Serial TX/RX and I2C signals.
Intel® Smart Display Module (Intel® SDM) is a scalable, future-proofed plug-and-play solution for digital signage. Its design omits housing, so it can be fully integrated into visual IoT applications that require minimal space with maximum performance. The integration of displays and plug-in computing capabilities delivers feature-rich functions while being easy to repair and upgrade.
Intel® Smart Display Module (Intel® SDM) is a scalable, future-proofed plug-and-play solution for digital signage. Its design omits housing, so it can be fully integrated into visual IoT applications that require minimal space with maximum performance. The integration of displays and plug-in computing capabilities delivers feature-rich functions while being easy to repair and upgrade.
| Model name | ASDM-APL6 |
| Form Factor | Smart Display Module |
| Dimensions (L)x(W)mm | 60 mm x 100 mm |
| Processor |
Intel® Atom™ x5 E3930 1.30GHz / 1.80GHz (Base/Burst) Dual-Core SoC (6.5W) Intel® Pentium® N4200 1.10GHz / 2.50GHz (Base/Burst)QC 1.10GHZ (6W) Intel® Celeron® N3350 1.10GHz / 2.40GHz (Base/Burst) DC 1.10GHZ (6W) Intel® Penti |
| Chipset | Intel® Apollo Lake SoC integrate |
| BIOS | AMI UEFI Flash ROM |
| LAN Controller | Intel® I211 GbE |
| Audio Codec | N/A |
| Memory | |
| Technology | LPDDR4 on Board |
| Max. Capacity | Up to 8GB |
| Display | |
| Graphic | Intel® HD Gen. 9-LP Graphics |
| Display Interface | HDMI, DP (Golden Finger) |
| I/O | |
| Expansion Slot | 1 x M.2 E-key 2230 (WiFi/BT) |
| LAN | 1 x 10/100/1000 Mbps |
| Audio | N/A |
| USB | 2 x USB 3.0 (rear I/O) |
| COM | N/A |
| Display | HDMI , DP (Golden Finger) |
| Environment | |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Operating Temperature |
0°C ~ 60°C (32°F ~ 140°F) standard -20°C ~ 70°C (-4°F ~ 158°F) optional -40°C ~ 70°C (-40°F ~ 158°F) optional -40°C ~ 80°C (-4°F ~ 176°F) |
