Rugged Panel PCs & Monitors

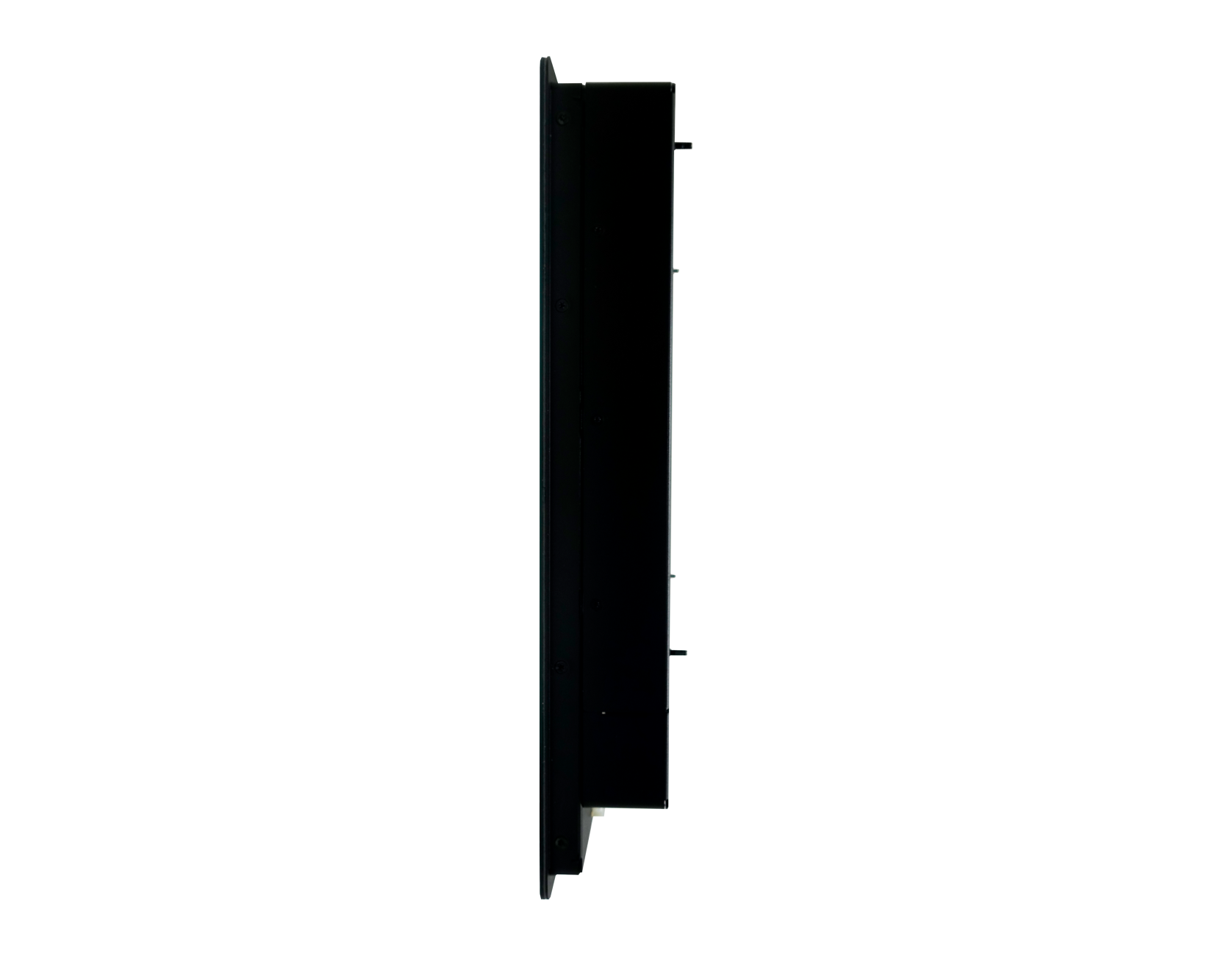

IPPS-1566-WHL0-ZP00
Wide 15.6" P-CAP Panel PC with 8th Gen. Intel® Whiskey Lake-U mobile processors
- Intel® 8th Core™ i7/i5/i3/Celeron® processors
- 15.6" LCD, 1920 x 1080, 1200nit
- 10-Point P-CAP touch screen
- 1 HDMI, 4USB ,2 LAN
- Front IP54 and Fanless design
- AC 110V~240V input
IPPS-1566-WHL0-ZP00 is 15.6” rugged panel computers are designed to increase reliability and readability under the impact of all elements, like snow, water, dust, heat, cold, and sun. These PCs are made with industrial-grade components that allow them to operate in a much wide range of temperatures than traditional units and can go from cold to hot environments without condensation build-up. They are completely waterproof and vibration resistant and boast an ingress protection rating of IP54 or higher.
IPPS-1566-WHL0-ZP00 is rugged panel pc with 8th-generation Intel® CoreTM processor deliver a reliable, durable, and versatile platform for use in industrial environments. It also features a 1200nits LCD panel offering a sunlight-readable, projected capacitive multi-touch, glove-friendly, providing an excellent user experience for HMI applications in outdoor and hazardous environment.
IPPS-1566-WHL0-ZP00 is rugged panel pc with 8th-generation Intel® CoreTM processor deliver a reliable, durable, and versatile platform for use in industrial environments. It also features a 1200nits LCD panel offering a sunlight-readable, projected capacitive multi-touch, glove-friendly, providing an excellent user experience for HMI applications in outdoor and hazardous environment.
| Model Name | IPPS-1566-WHL0-ZP00 |
| LCD | |
| Display Type | 15.6" FHD TFT LCD |
| Display Area (mm) | 344.16(H) x 193.59(V) |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 pixel |
| Brightness | 1600 cd/m² |
| Color | 16.7M colors |
| Color saturation (NTSC) | 81% |
| Pixel Pitch (H/V) | 0.17925mm x 0.17925mm |
| Constrast Ratio | 1000:1 |
| Viewing Angle (H/V) | 170°/170°/(typ.) |
| Backlight MTBF (typ.) | 100,000 hrs (typ.) |
| Touch Screen Type | P-CAP 10 points touch screen |
| LCD Color | 16.2M |
| System | |
| CPU |
Intel® 8th Gen Core™ i7/i5/i3/Celeron® processors Intel® Core™ i7-8665UE 1.7GHz QC (25W) Intel® Core™ i5-8365UE 1.6GHz QC (25W) Intel®Core™ i3-8145UE 2.2GHz DC (25W) Intel® Celeron® 4305UE 2.0GHz DC (18W) |
| Chipset | Intel® Whiskey Lake-U Processor integrated |
| Memory | 2 x 260-pin DDR4 2400MHz SDRAM;max. up to 32GB |
| Graphic | Intel® Gen 9.5 UHD 620 Graphics integrated |
| Watchdog Timer | Yes |
| Indicators | N/A |
| Controls | N/A |
| Expansion Slot |
1 x Mini-PCIe (Full size) 1 x M.2 B-key 3042 (WWAN w/ uSIM) |
| Processor | Intel® Celeron® Processor 4305UE Dual Core(2M Cache, 2.0 GHz) |
| System I/O | |
| USB | 4 x USB 3.1, 2 x LAN,1 x HDMI |
| COM | N/A |
| LAN | 2 x LAN(M12) |
| Display | 1XHDMI |
| Audio | N/A |
| Storage Support | |
| HDD | N/A |
| mSATA | 1 |
| Power | |
| Power Supply | AC 110 ~ 240V input |
| LCD Power Consumption | 45W (Burn in Test)26.5W (Idle) |
| Environment | |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Relative humidity | 0% ~ 90% (non-condensing) |
| IP level | Front IP54 / Back IP5X |
| Mechanical | |
| Standard Color | Black |
| Dimensions (W)x(D)x(H)mm | 387.7 x 260.2 x 78.8 |
| Weight | 4.3 kg |
| Dimensions | 392.2 mm(W) x 66.4 mm(D) x 324.6 mm(H) |
| Mounting | VESA 100 x 100、Wall Mount |
