IP65 航海用显示器
NPD0835

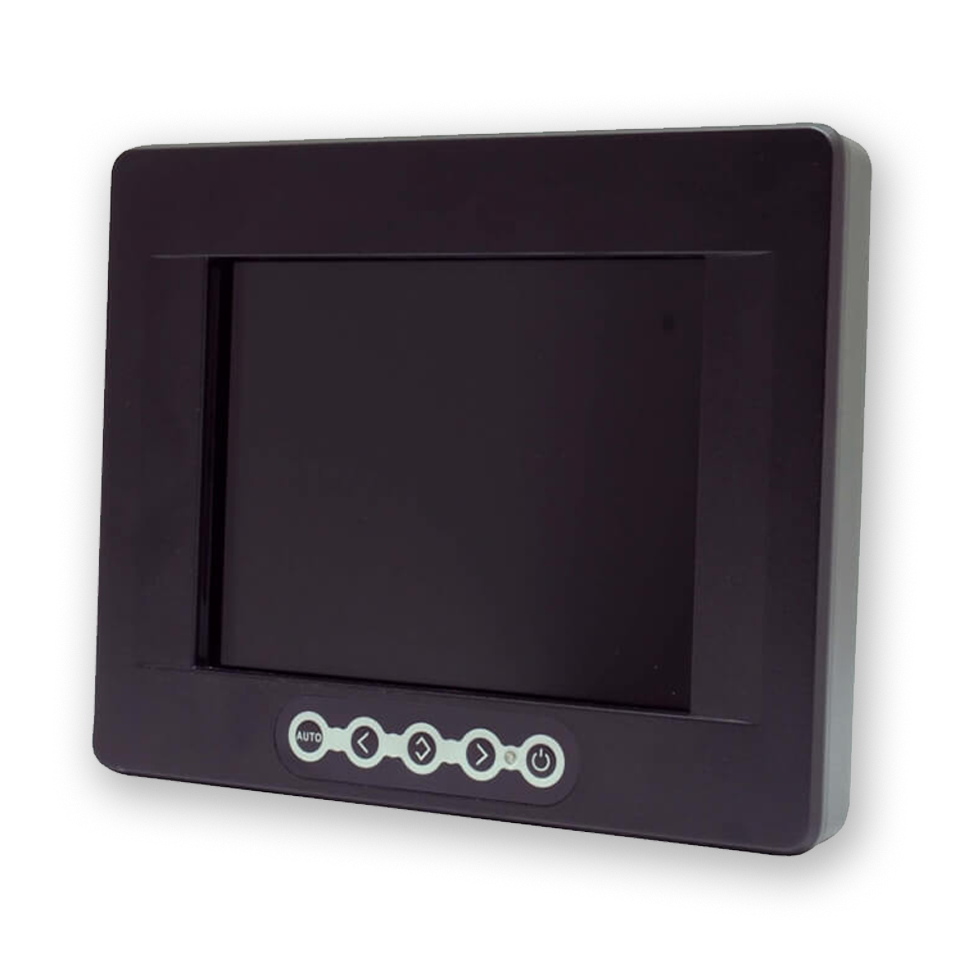

8.4” IP65/IP68 Sunlight Readable Marine Display
- 1000 nits Sunlight Readable LCD
- Long Life, Low Power Consumption LED Backlight
- Wide Operating Temperature
- Advanced Optical Bonding (AOT)
- High Shock & Vibration Resistance
- IR Touch Support (front IP65 design)
- AR glass support (IP68 design)
- 9-36V DC Input
| Model name | NPD0835 |
| Description | 8.4" IP65/IP68 Sunlight Readable Marine Display |
| Size | 8.4" |
| Display area | 170.4(H) x 127.8(V) |
| Brightness | 1000 cd/m² |
| Resolution | 800x600 |
| Aspect ratio | 4:3 |
| Contrast ratio | 450:1 |
| Pixel pitch (mm) | 0.213(H) x 0.213 (V) |
| Pixel per inch (PPI) | 119 |
| Viewing angle | 130 (H), 115(V) |
| Display colors | 16.2M |
| Response time (Typical) | 35ms |
| Video interface | VGAx1 |
| Input power | DC input 9~36V |
| Power consumption | 9.5W |
| Dimensions (mm) | 250(W)x200(H)x64(D) |
| Weight (Net) | 3kg |
| Mounting | VESA mount |
| Operating temperature | -20˚C~60˚C (-4℉~140℉) |
| Storage temperature | -30˚C~75˚C (-22℉~167℉) |
| Product approval | CE/FCC |
| IP rating | Waterproof IP68 & IP65 standards |
| Construction | Rugged Aluminum Alloy Chassis |
| Optional | □Glass □Resistive Touch □PCT Touch |
| Marine Type Approval | BV Rule IACES-E10 certification, comply with IEC 60945 |
