IP65 航海用觸控显示器
NPD1768

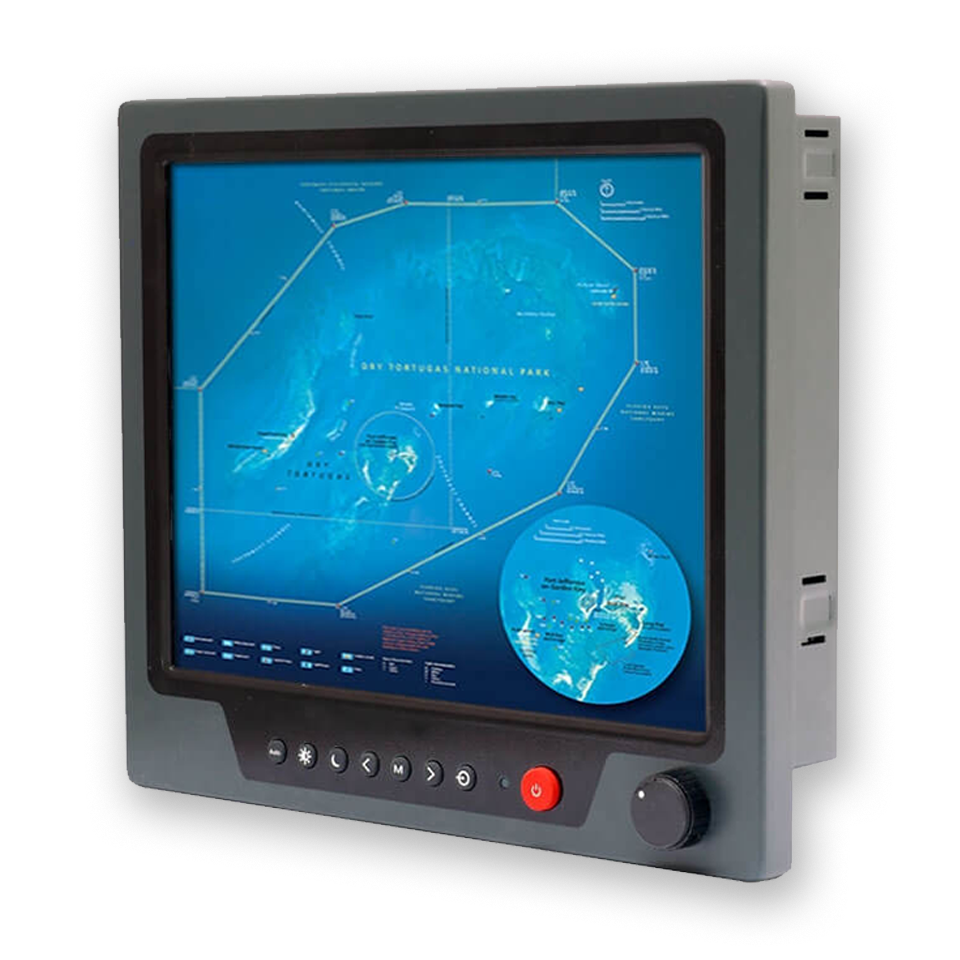

17" IP65 Sunlight Readable PCT Multi-Touch Marine Display
- 17" sunlight readable, high brightness (1,600 nits) LCD
- Advanced Optical Bonding (AOT)
- High shock & vibration resistance
- Picture-in-Picture function
- Projected Capacitive Multi-Touch Support
- IP65 waterproof (front)
- 9-36V DC input
- BV Rule IACES‐E10 certified; IEC 60945 compliant
| Model name | NPD1768 |
| Description | 17" IP65 Sunlight Readable PCT Multi-Touch Marine Display |
| Size | 17" |
| Display area | 337.9(H) x270.3(V) |
| Brightness | 1600 cd/m² |
| Resolution | 1280x1024 |
| Aspect ratio | 5:4 |
| Contrast ratio | 1000:1 |
| Pixel pitch (mm) | 0.264 (H) x 0.264 (V) |
| Pixel per inch (PPI) | 96 |
| Viewing angle | 160° (H), 160° (V) |
| Display colors | 16.7M |
| Response time (Typical) | 5ms |
| Video interface | VGAx2, DVIx2, Compositex3, RS232x1, USBx1 |
| Input power | DC input 9~36V |
| Power consumption | 38w |
| Dimensions (mm) | 413.4(W)x391.9(H)x58.2(D) |
| Weight (Net) | 4.8kg |
| Mounting | Panel (Flush) mount, VESA mount |
| Operating temperature | -10˚C~50˚C (-14℉~122℉) |
| Storage temperature | -20˚C~70˚C (-4℉~158℉) |
| Product approval | CE/FCC |
| Picture in picture | 3 stages (Child, split and wide screen) |
| IP rating | IP65 waterproof (facial) with console mounted |
| Construction | Rugged aluminum alloy chassis |
| Optional | □Glass □Resistive Touch □PCT Touch |
| Marine Type Approval | IEC 60945 BV marine and IACS-E10 approval pending |
