主要特色
-
Sunlight Readable
-
MTBF 100K
-
Low Power Consumption
-
Wide Temp
| Model Name | ULF2405-A | ULH2405-A | ULO2405-A |
| Description | 24” TFT LCD, 1000nits LED Backlight, 1920x1080 | ||
| size | 24” | ||
| Display area (mm) | 531.36(H) x 298.89(V) | ||
| Brightness | 1000 cd/m2 | ||
| Resolution | 1920x1080 | ||
| Aspect ratio | 16:9 | ||
| Contrast ratio | 2600 : 1 | ||
| Pixel pitch (mm) | 0.27675(H) x 0.27675(V) | ||
| Pixel per inch (PPI) | 92 | ||
| Viewing angle | 178°(H),178°(V) | ||
| Color saturation (NTSC) | 84% | ||
| Display colors | 16.7M | ||
| Response time (Typical) | 25ms | ||

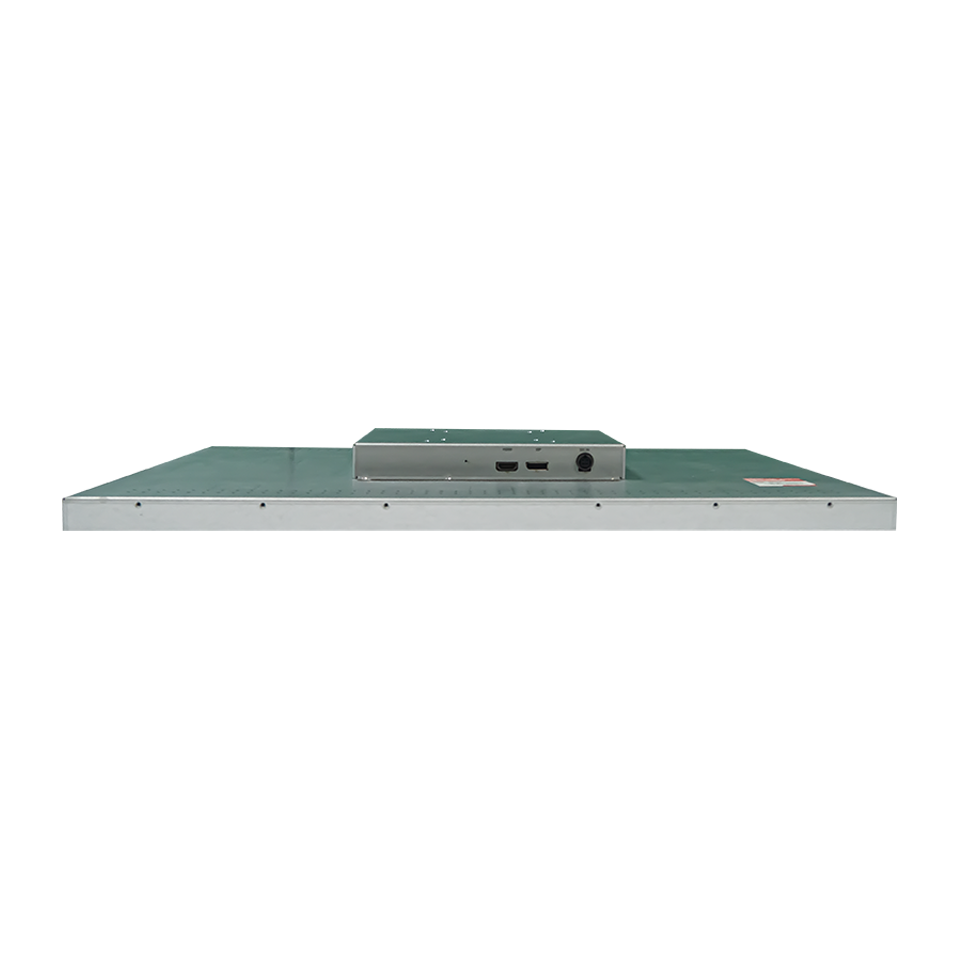

| Video interface | LVDS | HDMI, DP | |
| Input power | DC 12V | ||
| Power consumption | 29W | 32W | |
| Dimensions (mm) | 556 x 323.2 x 16.36 | 558.6 x 325.8 x 50 | |
| Bezel size (U/B/L/R) | 12.15/12.16/12.32/12.32 | 13.45/13.46/13.62/13.62 | |
| Weight (Net) | 2.4 kg | 4 kg | |

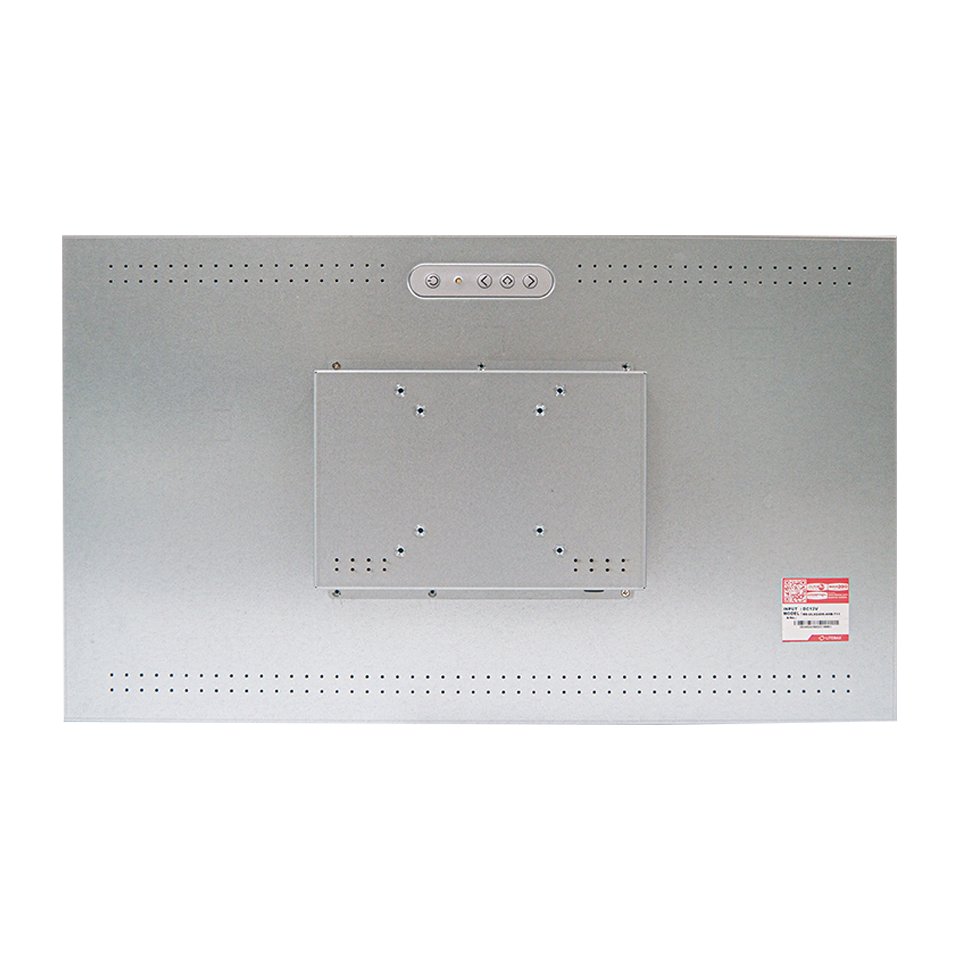

| Mounting | VESA 75x75, 100x100 | ||
| OSD key | 4 Keys (Power Switch, Menu, +, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | -20 ˚C ~ 70 ˚C | ||
| Storage temperature | -30 ˚C ~ 80 ˚C | ||
下载
-
标题
ULO_2405-A
类型Datasheet
发布日期2022/Nov/03
-
类型
Datasheet
发布日期2022/Nov/03
